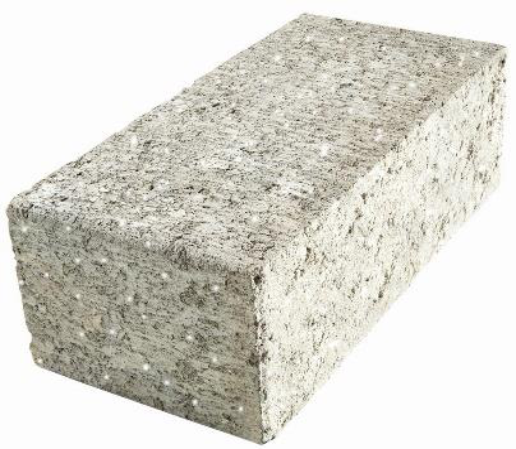

New Thermal Brick
How to submit building plans using Cem Brick Thermal Brick to local authorities and council:Download Files

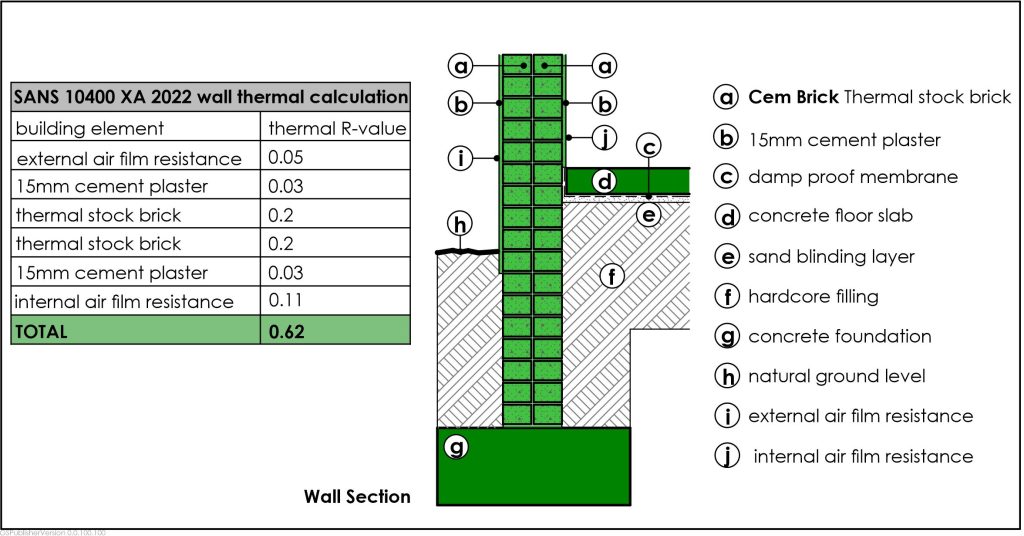

Download the Rational Diagram and attached it to the building plan. Cem Brick Thermal Brick R-Value calculation Diagram.
Cem Brick Thermal Brick complies with industry standards. The tests done by Cem Brick
confirms that the Cem Brick Thermal Brick satisfy the minimum value as prescribed. The below diagram is proof that a rational design has been done on the product. Refer to Frans Dekker's video on our website.
Frans Dekker’s | Bio
• Managing Director, South African Institute of Architectural Technologists (SAIAT)
• Leads the South African Institute of Architectural Technologists (SAIAT).
• A SACAP-registered Professional Senior Architectural Technologist with a private practice based in Vryheid, KwaZulu-Natal, South Africa.
• Active in CPD workshops on national building regulations since 2008.
• Represents SAIAT in several SABS committees, including convening workgroups for various SANS10400 parts and chairing subcommittees under TC059 focusing on energy efficiency and universal access.
Download the Product Specs and add it to the building plan. Thermal Stock Product Spec 7 and 10.5 mpa.
Download Product Certification – Product Scope Extension - SANS 1215. CMACS confirmation Compliance to SANS 1215.

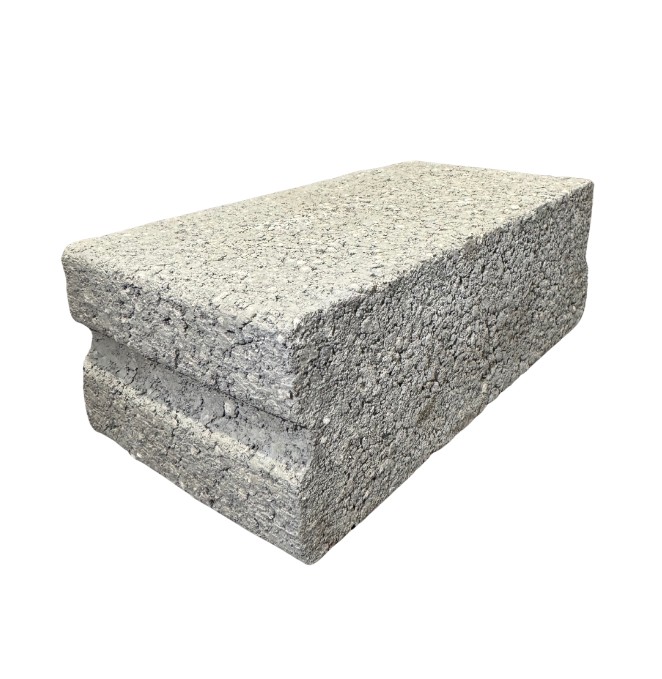

Thermal Stock Brick
R Value calculation and Diagram Ver1.0
Downloadable CAD FilesFor Architects
